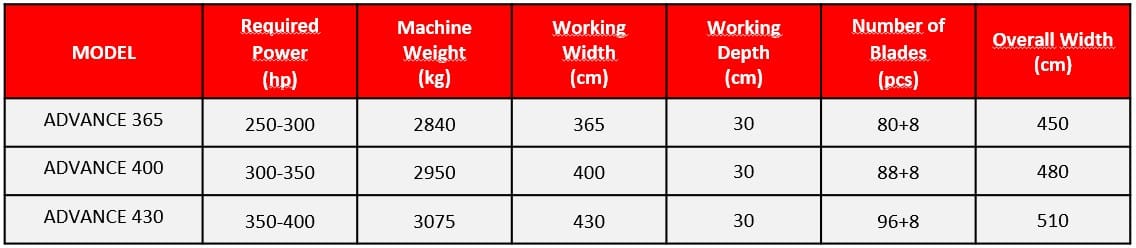

ADVANCE Series (250-400 HP)

STONE BURIERS WITH REAR ROLLER

ADVANCE Series

250 – 400 HP

  • Universal Cat 2 three-point hitch system
  • Two independent rotors
  • 1000 RPM central gearbox
  • Two fully enclosed ductile iron auxiliary gearboxes
  • Two fully enclosed ductile iron side gearboxes
  • Jack-angle adjustable vibrating sieve system
  • Flange-mounted removable rotor
  • Counter flange-mounted blade system
  • Blades made of HARDOX or equivalent steel
  • Front cutting blades made of HARDOX or equivalent steel
  • Hydraulic piston-driven oscillating sliding roller system (40 cm left-right)
  • Hydraulic piston system for depth adjustment
  • Jack system for leveling adjustment
  • Tractor wheel track breaker subsoiler
  • Shear bolt PTO shaft (Tractor side 1 3/8 Z=6, Machine side 1 3/4 Z=6)

Drive System
1. Central Gearbox (Main Transmission)
2-4. Fully Enclosed Auxiliary Gearbox
3-5. Fully Enclosed Side Gearbox

Hydraulic Piston Driven Oscillating Sliding Roller System

PLUS Series (170-250HP)

STONE BURIERS WITH REAR ROLLER

PLUS Series

170 – 250 HP

  • Universal Cat 2 three-point hitch system
  • Two independent rotors
  • 540 RPM central gearbox
  • Two fully enclosed ductile iron side gearboxes
  • Jack-angle adjustable vibrating sieve system
  • Flange-mounted removable rotor
  • Counter flange-mounted blade system
  • Blades made of HARDOX or equivalent steel
  • Front cutting blades made of HARDOX or equivalent steel
  • Hydraulic piston-driven oscillating sliding roller system (40 cm left-right)
  • Hydraulic piston system for depth adjustment
  • Jack system for leveling adjustment
  • Tractor wheel track breaker subsoiler
  • Shear bolt PTO shaft (Tractor side 1 3/8 Z=6, Machine side 1 3/4 Z=6)

Drive System
1. Central Gearbox (Main Transmission)
2-3. Fully Enclosed Auxiliary Gearbox

Hydraulic Piston Driven Oscillating Sliding Roller System

ECO Series (100-180 HP)

STONE BURIERS WITH REAR ROLLER

ECO Series

100 – 180 HP

  • Universal Cat 2 three-point hitch system
  • Two independent rotors
  • 540 RPM center-driven gearbox
  • Adjustable vibrating sieve system
  • Flange-mounted removable rotor
  • Counter flange-mounted blade system
  • Blades made of HARDOX or equivalent steel
  • Front cutting blades made of HARDOX or equivalent steel
  • Hydraulic piston system for depth adjustment
  • Jack system for leveling adjustment
  • Tractor wheel track breaker subsoiler
  • Shear bolt PTO shaft (Tractor side 1 3/8 Z=6, Machine side 1 3/4 Z=6)
Merkez Şanzıman

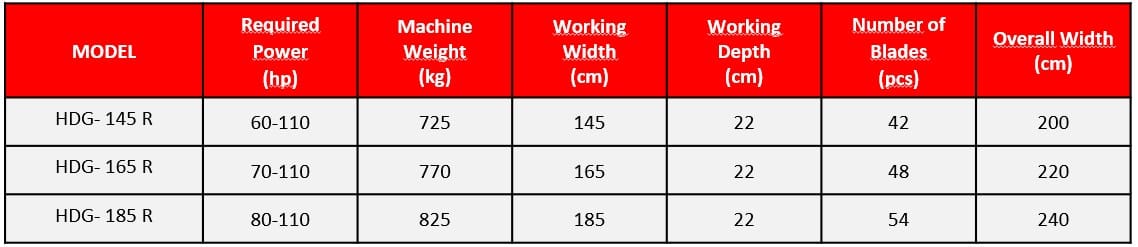

HDG-R Series (60-110 HP)

STONE BURIERS WITH REAR ROLLER

HDG-R Series

60-110 HP

  • Universal Cat 2 three-point hitch system
  • 540 RPM single-speed gearbox
  • Chain transmission in an oil bath
  • Maintenance-free liquid-lubricated counter bearing
  • Automatic chain tensioning system
  • Vibrating sieve system
  • Flange-mounted removable rotor
  • HARDOX or equivalent steel blades
  • HARDOX or equivalent front cutting blades
  • Counter-flange-mounted blade system
  • Jack system for depth adjustment
  • Jack system for leveling adjustment
  • Shear bolt PTO shaft (Tractor side 1 3/8 Z=6, Machine side 1 3/8 Z=6)
  • Mechanically adjustable pressure roller

LDG Series (15-40 HP)

STONE BURIERS WITH REAR ROLLER

LDG Series

15 – 40 HP

  • Universal Cat 1 three-point hitch system
  • 540 RPM single-speed gearbox
  • Chain transmission in an oil bath
  • Automatic chain tensioning system
  • Mechanical side shift
  • Vibrating sieve system
  • C-type blades
  • Jack system for depth adjustment (LDG-MK and LDG-M models)
  • Slide system for depth adjustment (LDG-S models)
  • Shear bolt PTO shaft (1 3/8 Z=6)

LDG – S
Without leveling cover and roller

LDG – M
Without leveling cover, with roller

LDG – MK
With leveling cover and roller
